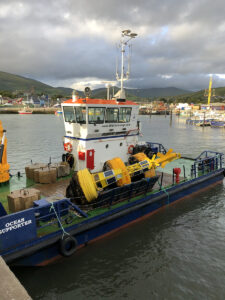

12.5 tonne Bollard Pull Multicat. This twin screw multi cat is a highly versatile and manoeuvrable vessel which is perfect for a variety of marine operations such as a dive support vessel, towing, anchor handling, servicing moorings and aids to navigation, assisting dredging operations, manoeuvring barges and assisting marine construction projects..


Type of Vessel: Multicat type vessel

Builder: Manor Marine

Build Date, Place: 1997/2010, UK

Certification: 12 Passengers, Towing, 31 tonne deck cargo capacity

40T Deck Capacity


Length OA: 19 m
Beam OA: 8m
Depth at Sides: 2.75m
Draft Aft: 1.8m


Bollard Pull: 12.5t
Speed: 10 knots
Deck Cargo Capacity: 42 tonne

Propulsion system

Main Engine: 2x Doosaan Daewoo V158TI
Total Power: 960HP/706kw @ 1800rpm
Marine Transmissions: 2x ZF IRM350-4.96:1
Propulsion: 2x 4- blade fixes pitch propos, 1300m in nozzles

Deck Equipment

Hydraulic Crane: Effer 65000/4SL – 65tm(with 6t winch and r/c)

Capacity: 4t @ 13.7m/11t @ 5.3m

Winch: North Sea Winches -17t pull, 40t brake, warp head

Tugger Winch: North Sea Winch-5t pull

Bow Roller: 610mm diameter

Towing Hook: Mampaey Towing Hook (14t SWL)

Compressor: 14cuft/min

Welding Set: Linarc 4-5-SA

Burning Gear: Oxy/Acetylene

Deck protection: Timber

Navigation & Communication Equipment

Searchlight: Seematz WS351 500W

Compass: Lilliy&Gillie Kotter type/Furuno SC-50 Sat Com

Radar: Furuno MI3933C

GPS: Furuno GPI50D

Echo Sounder: Furuno LS6100

VHF Radio: 1x Icom IC-M505

Handheld VHF: Icom MI Euro

Chart Plotter: PC with Euronav electronic charts

AlS: Comar Class A AIS

Satellite Phone/Phone: Sailor Iridium SC4000/Motorola GSM

Loud Hailer/EPIRB: Raymatome RAY430/Mc Nurdo Smart Find

Autopilot: Simrad

Tank Capacities

Fuel Oil: 23m square with transfer pump

Fresh Water: 2m square

Lube Oil: 250ltrs


Wheelhouse with seating area
Large galley/day room
2x Single Cabins and 1x Twin Cabin
Sanitary Space, Toilet Shower and Laundry Room

Auxillary Equipment

Generator Sites: Doosan Daenwoo – 85 Kva
Harbout Generator Set: Beta Marine/Kubota – 20 Kva
Fuel Transfer Pumps: 521pm
Electrical System: 24 V DC/220V Shore Connection
